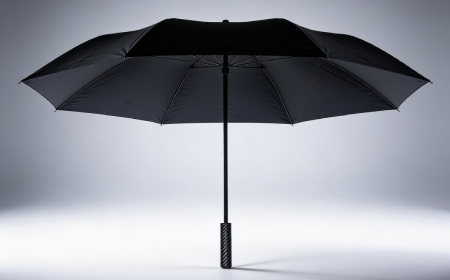

Carbon fiber umbrellas are becoming a benchmark in the premium umbrella market. By replacing traditional materials such as steel, aluminum alloy, or fiberglass, carbon fiber composites offer significant advantages in weight reduction, structural strength, corrosion resistance, and non-conductive properties . Selecting the right manufacturing process for the ribs and shaft is crucial to achieving the optimal balance of mechanical performance, product design, and production efficiency.
Pultrusion is a continuous molding process where carbon fibers are pulled through a resin bath and then through a heated die, where the material cures into a solid profile. This method is widely used for producing constant cross-section components such as umbrella shafts and stretchers.
Key Advantages
Excellent Linear Strength — Produces rods or tubes with high axial tensile and compressive strength, ideal for main shafts and straight ribs .
High Fiber Volume Ratio — Achieves fiber content up to 65–70%, maximizing specific strength and stiffness.
High Production Efficiency — Continuous process ideal for mass production of standardized components .
Potential Limitations
Limited to constant cross-sectional profiles (round, square, oval).
Lower hoop strength compared to wound structures .
Filament winding involves winding continuous resin-impregnated fibers onto a rotating mandrel at programmed angles. This method is highly suitable for producing hollow, thin-walled tubes for high-performance umbrella shafts.
Key Advantages
Superior Hoop Strength — The continuous fiber winding pattern provides excellent resistance to bursting and bending stresses.
Seamless Structure — No longitudinal seam, ensuring high structural integrity and aesthetics .
Consistent Quality — Automated process ensures uniform wall thickness and fiber orientation.
Potential Limitations
Higher initial equipment and tooling costs.
Best suited for medium-to-large batch production.
Roll wrapping uses pre-impregnated carbon fiber sheets laid at designed orientations, wrapped around a mandrel, and cured under heat and pressure. This process offers high flexibility and is ideal for complex or custom umbrella rib structures .
Key Advantages
Design Flexibility — Allows complex layup sequences (e.g., [0°/±45°/90°]) to tailor strength and stiffness for specific rib sections.
Excellent Surface Finish — Smooth inner and outer surfaces using precision mandrels, suitable for high-end consumer products.
Ideal for Small-to-Medium Batches — Cost-effective for custom, limited-edition, or high-end umbrella production .
Potential Limitations
Lower production efficiency compared to pultrusion.
Possibility of a longitudinal seam if not optimized.
| Criteria | Pultrusion | Filament Winding | Roll-Wrapping |
|---|---|---|---|
| Mechanical Performance | ★★★★★ (Highest axial strength) | ★★★★★ (Best hoop & torsional strength) | ★★★★☆ (Excellent with optimized layup) |
| Weight Reduction | ★★★★★ | ★★★★★ | ★★★★☆ |
| Production Efficiency | ★★★★★ (Continuous) | ★★★★☆ (Automated, batch) | ★★★☆☆ (Batch-dependent) |
| Design Flexibility | ★★☆☆☆ | ★★★☆☆ | ★★★★★ |
| Surface Quality | ★★★☆☆ | ★★★★☆ | ★★★★★ |
| Cost Efficiency | Best for large batches | Best for medium batches | Best for small/custom batches |
| Typical Applications | Main shafts, straight ribs | Hollow main shafts, high-end folding shafts | Complex ribs, custom folding mechanisms |
Maximum Performance & Durability (High-End Straight Umbrellas)
Filament-wound carbon fiber shafts provide exceptional hoop strength and a seamless appearance, making them ideal for luxury straight umbrellas and golf umbrellas where both strength and aesthetics are paramount .
Optimal Balance (Premium Folding Umbrellas)
Roll-wrapped ribs with optimized layup ([0° / ±45°]) offer excellent flexibility and strength for folding mechanisms, combined with high-quality surface finish . Pultruded stretchers can complement this for cost-effective structural components.
Cost-Effective Mass Production (Standard Umbrellas)
Pultruded carbon fiber rods and tubes deliver consistent mechanical performance at high production volumes, suitable for mid-range umbrellas where cost efficiency is a priority .
Beyond lightweight and high strength, carbon fiber offers unique advantages:
Corrosion Resistance — Will not rust, ensuring longevity even in wet conditions .
Non-Conductive & Lightning-Resistant — Carbon fiber composites provide insulation, offering an added safety benefit during thunderstorms .
Superior Fatigue Resistance — Maintains structural integrity through repeated opening and closing cycles.
All three manufacturing processes—pultrusion, filament winding, and roll-wrapping—deliver outstanding performance for carbon fiber umbrella components. Pultrusion offers the highest axial strength and production efficiency for standard shafts and ribs. Filament winding provides superior hoop strength and a seamless finish for premium straight shafts. Roll-wrapping delivers unmatched design flexibility and surface quality for complex, custom rib structures .
Selecting the right process depends on the product positioning, structural requirements, production volume, and target cost.
