Carbon Fiber Fabric

Carbon Fiber Fabric

GBTECH specializes in producing high-quality carbon fiber fabrics with excellent tensile strength, flexibility, and lightweight characteristics. Available in plain weave, twill weave, unidirectional, and hybrid styles, our carbon fiber fabrics are ideal for aerospace, automotive, marine, construction, and sports applications. GBTECH offers customized fabric weight, width, and fiber type to meet diverse engineering and composite manufacturing needs.

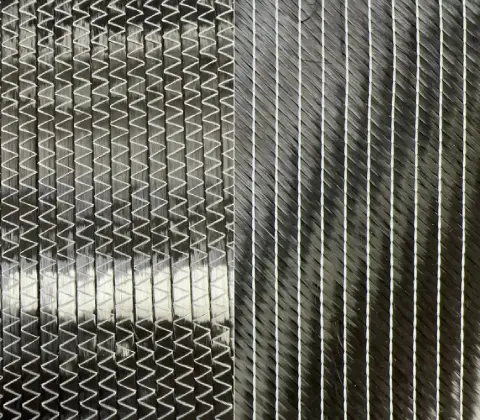

Biaxial Carbon Fiber Fabric

Material: 100% Carbon Fiber
Raw material: 12K,24K

Weaving Method: +45°/ -45°, 0°/90°, Three-axis, Four-axis (Custom available)

Weight: 100gsm, 150gsm,200gsm, 300gsm,400gsm, 600gsm, 800gsm

Width: 1270mm (Custom available)

Application:

Sports Equipment / Construction / Bridge Reinforcement / Marine

Inquiry

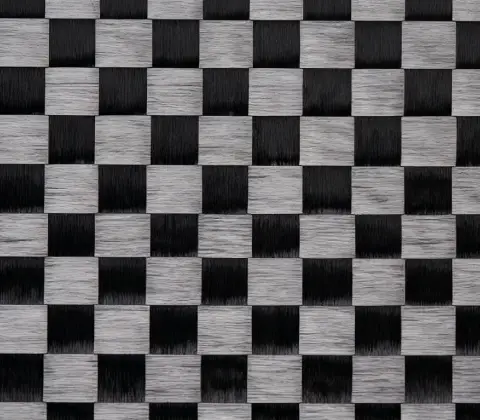

M30 grade Carbon Fiber Spread Tow Fabric

Material: 100% Carbon Fiber

Weaving Method: Plain Weave

Grid Width: 10mm, 16mm,20mm,18mm,25mm
Weight: 52gsm, 61gsm, 65gsm,76gsm, 84gsm, 95gsm, 152gsm

Width: 1000mm
Application:

Sports Equipment / Construction / Bridge Reinforcement / Marine

Inquiry

M30 grade Carbon Fiber Spread Tow Fabric

24K Carbon Fiber Spread Tow Fabric

Carbon fiber grades: T300，T700, T800

Material: 100% Carbon Fiber
Weaving Method: Plain Weave

Grid Width: 8mm, 10mm, 16mm,20mm,18mm,25mm
Weight: 52gsm, 83gsm, 103gsm,114gsm, 130gsm, 165gsm, 183gsm, 132gsm,206gsm,

Width: 1000mm
Application:

Sports Equipment / Construction / Bridge Reinforcement / Marine

Inquiry

12K Carbon Fiber Spread Tow Fabric

Carbon fiber grades: T300，T700, T800

Material: 100% Carbon Fiber
Weaving Method: Plain Weave

Grid Width: 8mm, 10mm, 16mm,20mm,18mm,25mm
Weight: 65gsm, 80gsm, 88gsm,100gsm, 160gsm, 200gsm

Width: 1000mm
Application:

Sports Equipment / Construction / Bridge Reinforcement / Marine

Inquiry

12K carbon fiber fabric

Material: 100% Carbon Fiber
Weight: 400gsm, 600gsm (Custom available)

Weaving Method: 2/2 twil, Plain weave (Custom available)

Width: 1000mm (Custom available)

Application:

Sports Equipment / Construction / Bridge Reinforcement / Marine

Inquiry

6K carbon fiber fabric

Material: 100% Carbon Fiber
Weight: 320gsm (Custom available)

Weaving Method: 2/2 twil, Plain weave (Custom available)

Width: 1000mm (Custom available)

Application:

Sports Equipment / Construction / Bridge Reinforcement / Marine

Inquiry

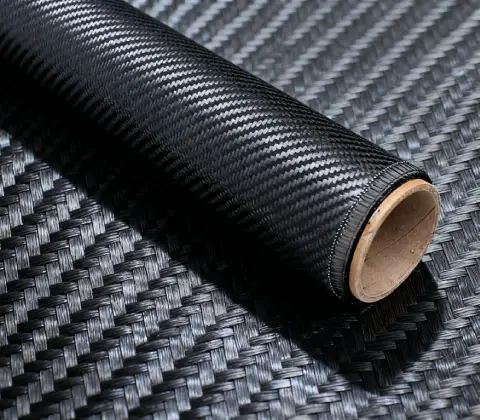

1K/3K Carbon Fiber Fabrics

Material: 100% Carbon Fiber
Weight: 120gsm, 200gsm, 240gsm,280gsm (Custom available)

Weaving Method: 2/2 twil, Plain weave, 4x4 twill (Custom available)

Width: 1000mm (Custom available)

Application:

Sports Equipment / Construction / Bridge Reinforcement / Marine

Inquiry

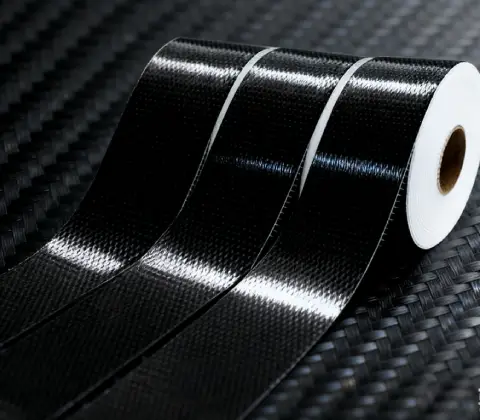

Unidirectional carbon fiber fabric

Material: 100% Carbon Fiber
Yarn: 12K, 24K
Weight: 200gsm, 300gsm, 600gsm
Width: 100mm / 150mm / 200mm / 300mm / 500mm
Strength Grade: Grade 1，Grade 2
Application:

Sports Equipment / Construction / Bridge Reinforcement / Marine

Inquiry
