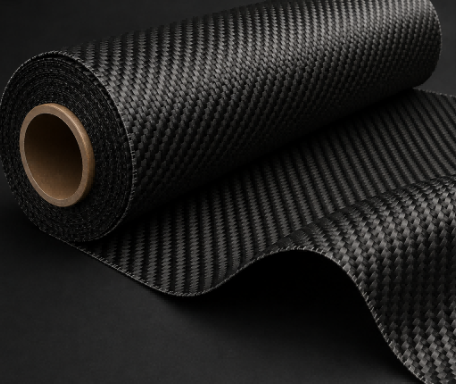

Intermediate-weight 2×2 twill for general laminate development. The 240 g/m² fabric provides an intermediate areal-weight choice between the 200 and 280 g/m² options. Its 2×2 twill structure allows buyers to compare weight while retaining the same listed weave family as the 200 g/m² cloth.
| Specification | Value |
|---|---|
| Fiber grade | T300 |
| Nominal areal weight | 240 g/m² |
| Weave | 2×2 twill |
| Width | 1 m |
| Listed roll format | 100 m × 1 m |
| Fiber tow size / yarn count | Not confirmed; request technical data |
| Thickness / tolerances | Not confirmed; request technical data |
| Resin or impregnation status | Confirm supplied material condition |
Use this option for laminate-development trials where the team wants more reinforcement mass per ply than 200 g/m² without moving to the 600 g/m² range.
Weave, tow size, sizing and process compatibility are separate selection factors. Confirm the material data rather than substituting figures from another weight or weave.
General composite panels
Contoured equipment housings
Prototype automotive trim
Final composite properties depend on resin, ply orientation, consolidation, cure and the complete laminate design. Fabric weight alone does not certify a structural application.
Keep the fabric clean and dry and prevent contamination or weave distortion during cutting and lay-up. Plan ply orientations and seam locations, then validate wet-out and consolidation using the intended resin and process.
Do not specify a guaranteed resin compatibility, cure schedule or finished-laminate thickness without supplier data and process trials.
What does the weight describe? Compared with 200 g/m², this option contains 20% more nominal fabric mass per square metre; that is not a claim of 20% greater laminate strength.
Is T300 the same as 3K? No. T300 describes a fiber grade; 3K describes tow filament count. The supplied information does not confirm tow size.
Can I order a different roll length? Ask GBTECH to confirm cut-length supply, minimum quantity and packaging before ordering.
Specify 240 g/m², the required weave, total area or roll quantity, desired documentation and delivery country. Confirm current availability, price and processing compatibility with the quotation.
