200 g/m² T300 Carbon Fiber Fabric – 2×2 Twill

Price：$Bulk Pricing Available

MOQ: 100m²

Fast shipping from US warehouse

Bulk Discounts Available

Custom Szie and specification available

Send your size details and get a quote within 24 hours.

Contact to Buy

200 g/m² T300 Carbon Fiber Fabric – 2×2 Twill

Product Brief

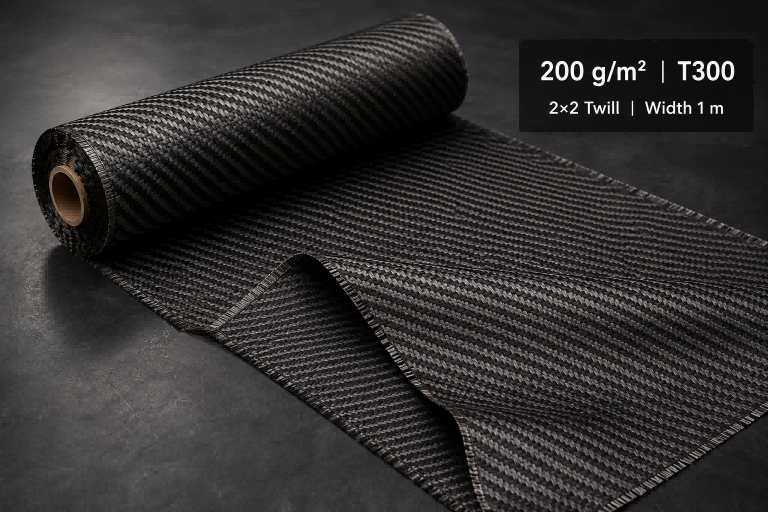

GBTECH 200 g/m² carbon fiber fabric is woven from T300 carbon fiber in a balanced 2×2 twill pattern. The cloth is supplied in a standard roll format of 100 m × 1 m and is positioned for lightweight laminates, appearance-focused components and detailed shapes. The diagonal twill pattern provides the familiar carbon-fiber appearance and allows the dry fabric to conform to curved surfaces more readily than a plain weave in many lay-up situations. Final composite performance depends on the resin system, fiber orientation, laminate design, processing method and quality control.

1. Product Specifications

2. Product Features

T300 carbon fiber: A clearly identified fiber grade provides a consistent material basis for product selection and purchasing discussions.

200 g/m² areal weight: Its relatively low areal weight supports controlled lay-up in thin laminates and around detailed contours.

Balanced 2×2 twill weave: The repeating over-two, under-two structure creates a diagonal visual pattern and balanced fabric construction.

Conformability for lay-up: Twill fabric can accommodate curved or contoured tooling, although suitability depends on part geometry and handling method.

One-metre working width: The standard 1 m width supports common panel, mold and cut-pattern layouts.

Dry-fabric process flexibility: The reinforcement can be paired with a compatible resin and process selected for the intended laminate.

Commercial supply support: Roll supply, cutting requirements, documentation and delivery options can be reviewed with the quotation.

3. Recommended Applications

· Automotive interior trim and cosmetic composite panels

· UAV, RC model and lightweight shell components

· Sporting-goods surfaces and equipment covers

· Consumer-product housings and decorative laminates

· Prototype panels and composite training projects

Application suitability and laminate performance must be verified by the customer through engineering review and process trials.

4. Processing Guidance

· Store the dry fabric clean, dry and protected from contamination and distortion.

· Plan ply orientation and cutting patterns before lay-up.

· Use a resin system and cure schedule compatible with the intended process and service conditions.

· Control fiber alignment, resin content, compaction and voids during manufacture.

· Use appropriate personal protective equipment when cutting or processing carbon fiber materials.

5. Ordering Information

Standard roll: 100 m × 1 m

Price: Quoted according to quantity, roll format, processing and delivery requirements

MOQ and lead time: Confirmed with the quotation

Shipping: International shipping options are available

Call to action: Request a Free Quote

6. FAQ

What does 200 g/m² mean?: It is the nominal mass of one square metre of dry fabric. It does not include resin or determine finished laminate thickness by itself.

What is a 2×2 twill weave?: Each tow passes over two and under two crossing tows, producing the characteristic diagonal pattern.

Does the fabric include resin?: No. This page describes dry woven reinforcement. A compatible resin system must be selected for the manufacturing process.

Can this fabric be used for my part?: Suitability depends on geometry, loads, ply orientation, resin, cure method, environment and quality requirements. Validate the laminate design before production.

Can GBTECH provide technical or order documentation?: Available documentation, tolerances, packaging and delivery requirements can be confirmed during quotation.
