10mm OD × 8mm ID Carbon Fiber Tube

Request a Quote

Price：$

Contact to Buy

Product Brief

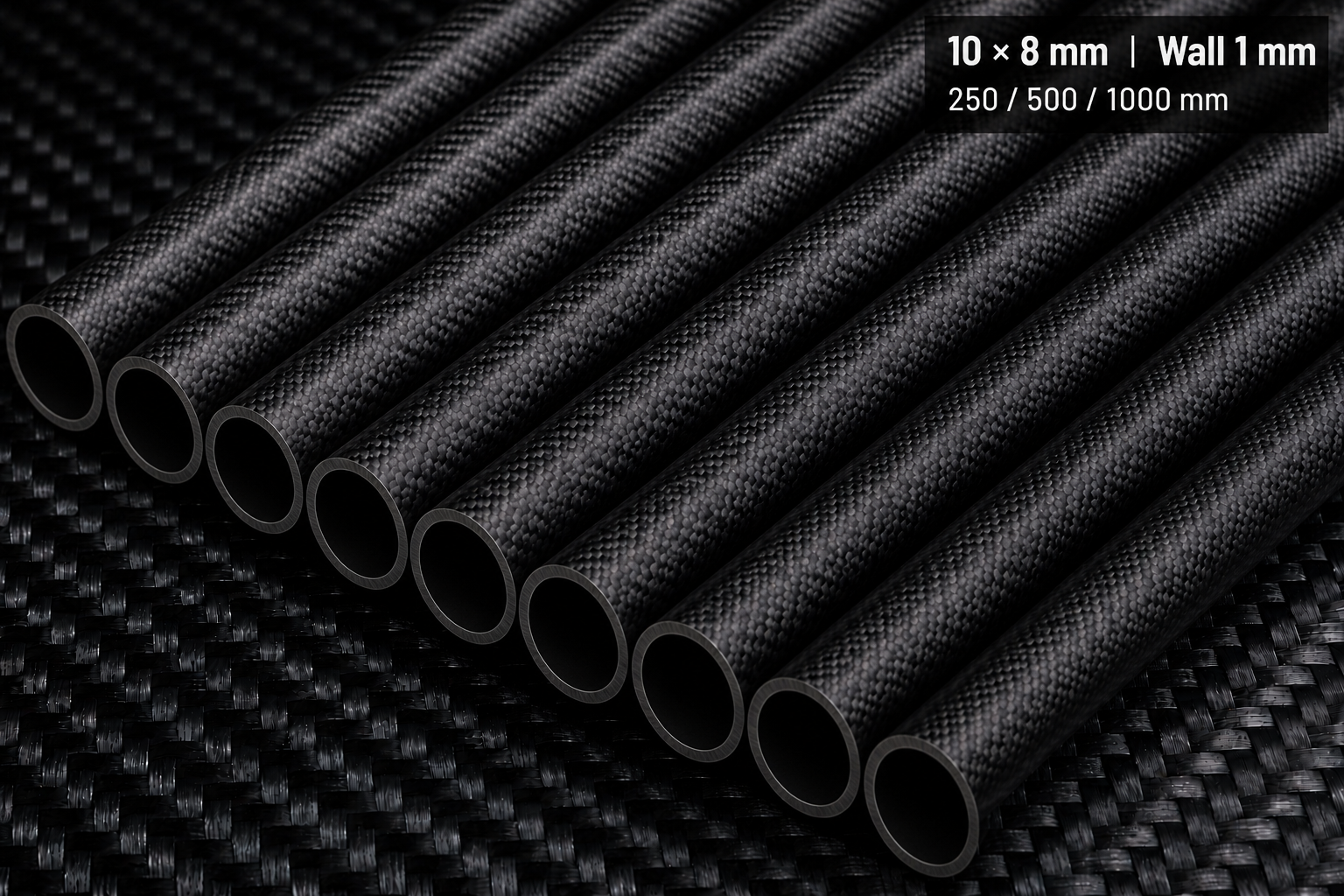

The GBTECH 10mm OD × 8mm ID × 250-1000mm carbon fiber tube is made with T300 carbon fiber and combines a compact circular profile with a 1mm wall thickness. Its 10mm outer diameter is suited to lightweight frames and general structural use where low mass, dimensional consistency and a clean profile are important. A matte surface with a diagonal weave appearance gives the tube a technical, low-glare finish. The 250-1000mm standard length can be cut for prototypes, replacement parts and production assemblies. Custom dimensions and batch supply are available on request.

1. Product Specifications

2. Product Features

Lightweight circular profile: The 10mm OD profile is intended for compact assemblies where component mass and available space matter.

T300 carbon fiber: The specified T300 carbon fiber grade provides a consistent material basis for the GBTECH warehouse range in both the US and Russia.

1mm wall thickness: A consistent 1mm wall provides a practical balance between low weight, internal clearance and structural form.

250-1000mm standard length: The 250-1000mm tube gives designers flexibility to cut multiple shorter components or use a longer continuous member.

Matte diagonal-weave surface: The visible diagonal pattern and matte finish provide a clean, low-glare appearance for exposed components.

Corrosion-resistant composite construction: Carbon fiber composite does not rust like unprotected steel, making it useful in environments where moisture exposure is a consideration.

Custom production support: Alternative dimensions, lengths, finishes and end-processing requirements can be reviewed for prototype and volume orders.

3. Recommended Applications

· Lightweight equipment frames and support members

· UAV, drone and robotics assemblies

· Camera rigs and positioning equipment

· Instrument supports and protective structures

· Prototype machinery and automation projects

Application suitability must be verified by the customer based on load, connection method, environment and required safety factor.

4. Processing and Installation

· Use tools suitable for carbon fiber composites.

· Control carbon dust during cutting or drilling and wear appropriate personal protective equipment.

· Seal or finish cut edges when required by the application.

· Select adhesives, inserts and clamping pressure according to the joint design.

· Avoid assuming the tube is suitable for a safety-critical load without engineering validation.

5. Customization Services

GBTECH can review custom requirements for outer and inner diameter, wall thickness, length, surface appearance, cutting and end finishing. To receive an accurate quotation, provide the required dimensions, quantity, tolerance, intended application and delivery country.

6. Pricing and Purchase Information

Price: Quoted according to quantity, dimensions and processing requirements

MOQ and lead time: Confirmed with the quotation

Shipping: International shipping options are available

Call to action: Request a Free Quote

7. FAQ

What does 10mm OD × 8mm ID × 250-1000mm mean?: The tube has a 10mm outer diameter, a 8mm inner diameter and a total length of 250-1000mm. The resulting wall thickness is 1mm.

Can the tube be supplied in another length?: Yes. Standard and custom lengths can be discussed when requesting a quotation.

Can carbon fiber tube be cut or drilled?: Yes, but suitable tooling, dust extraction and personal protection should be used. The final process depends on the required tolerance and joint design.

Is this tube suitable for my load?: Suitability depends on fiber architecture, resin system, span, load direction, joints and safety factor. Share the application requirements with GBTECH for product-selection support.
