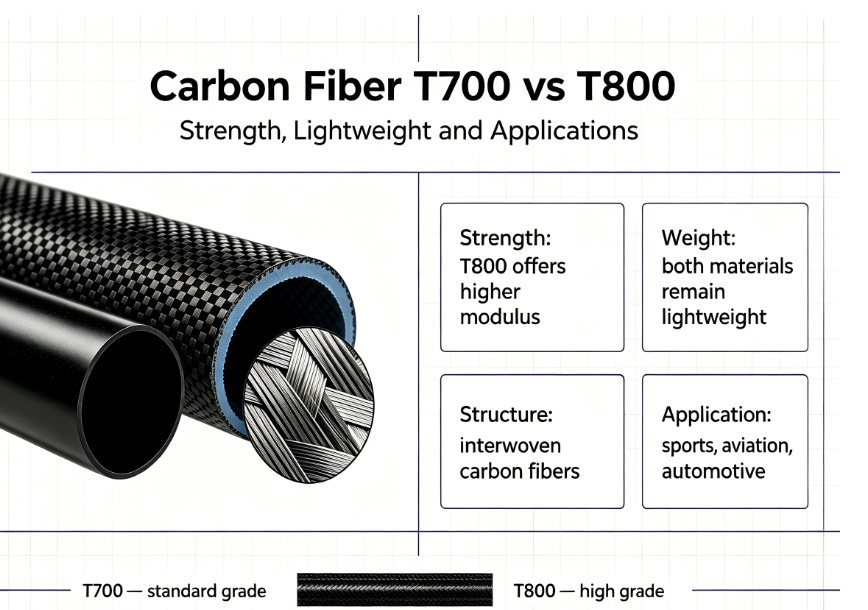

T700 vs. T800 Carbon Fiber: How to Choose the Right Grade for Your Application?

Is T800 always better than T700?

Not necessarily.

T800 typically offers higher strength and stiffness, but it also comes with a higher cost. For practical applications, the real question isn't "which grade is higher," but rather "which grade better fits the specific product requirements."

What are the differences between T700 and T800?

In terms of typical fiber properties, T700 has a tensile strength of approximately 4900 MPa and a tensile modulus of around 230 GPa. T800 typically offers a tensile strength in the range of 5500–5900 MPa and a tensile modulus of about 290 GPa.

This means T800 delivers higher strength and stiffness, making it especially suitable for products that demand greater lightweighting and structural performance. However, the material cost of T800 is also significantly higher than that of T700.

It's important to note that these figures represent typical ranges. Actual composite performance is also influenced by factors such as the resin system, fiber volume fraction, layup orientation, and manufacturing processes. Therefore, the fiber grade alone does not determine the final product performance.

What applications are suitable for T700?

T700's biggest advantage lies in its good balance between performance and cost.

For mechanical structures, robotic components, automotive lightweight parts, drones, sporting goods, and general industrial equipment—where products require adequate strength and stiffness but don't demand extreme performance—T700 is usually sufficient.

For example, if a carbon fiber tube used in robotic equipment already meets the load, stiffness, and weight requirements with T700, upgrading to T800 may not bring significant practical benefits, but would increase material costs.

When should you choose T800?

T800's advantages become more apparent when the product needs higher stiffness and greater performance margins at a lower weight.

Aerospace structures, high-performance drones, racing cars, and some premium sporting goods are typically more sensitive to weight, stiffness, and structural performance. In these applications, a higher-grade carbon fiber provides more room for structural optimization.

However, this doesn't mean T800 is suitable for all high-performance products. If the layup design, structural dimensions, or manufacturing process cannot fully leverage T800's advantages, using a higher-grade material may not yield the corresponding performance gains.

How to choose between T700 and T800?

You can evaluate from three aspects:

First, look at performance requirements. Does the product prioritize strength, or is stiffness and weight more critical?

Second, consider cost. Is the performance improvement from T800 worth the added material investment?

Finally, examine the overall structure. Can the layup method, wall thickness, fiber orientation, and manufacturing process fully utilize the material's properties?

Therefore, carbon fiber selection is not simply about pursuing a higher grade.

T700 is better suited for applications that emphasize a balance between performance and cost, while T800 is more appropriate for products with higher demands on stiffness, weight, and overall performance.

GBTECH can assist in evaluating carbon fiber grades such as T700 and T800 based on product dimensions, load requirements, target weight, and operating environment, and provides carbon fiber tubes, sheets, and custom composite solutions.

Choose the right carbon fiber grade—so that material performance truly serves your product design.
